Reversible
Heating and cooling with one appliance

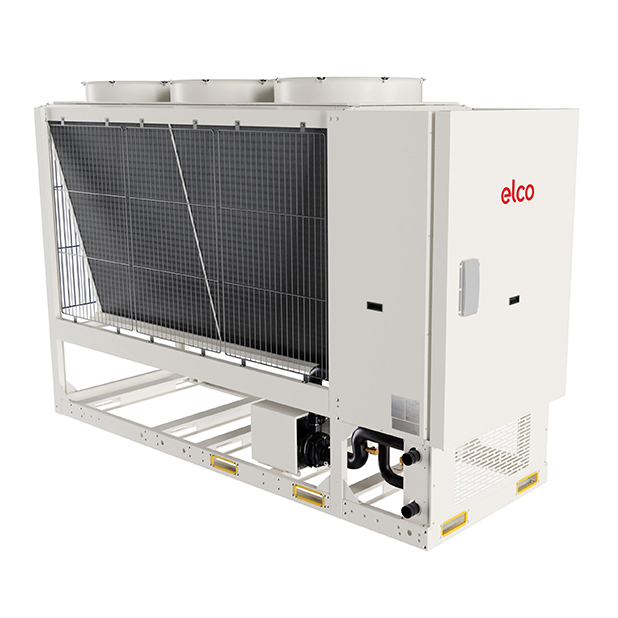

AEROTOP® L
Air-to-Water Heat Pump
Outputs from 54 kW to 88 kW
Outputs from 54 kW to 88 kW
Our new generation of AEROTOP® L heat pumps use ambient air as an energy source. Among the few heat pumps on the market that are reversible and work with R32 refrigerant.
Integrated components
The commercial AEROTOP® heat pumps are already equipped with many extras as standard. These include, for example, the inverter pump, vibration damper and anti-corrosion coating on the evaporator.
Innovative power control
The AEROTOP® products for commercial use represent a new level of energy efficiency for cooling systems and heat pumps in their category. Depending on the energy requirement, the reversible system precisely adjusts the rotation frequency of the compressor. This ensures:
- Shorter start-up times and fewer start/stop processes
- Heating temperatures are reached in less time than with systems without inverters
- Lower temperature fluctuations during operation
Eco Mode
The ECO mode enables the greatest possible energy savings without having to forego the comfort of heating or cooling. With this function, main and secondary usage times can be defined for daily operation. A period in which maximum comfort must be guaranteed (for example during working hours in offices) and a period in which energy savings are preferred (for example at night).
Key features at a glance
R-32 Refrigerant circuit
70% lower global warming potential compared to R410A refrigerant
Quiet operation
The sound power level is only 55 dB(A)
Efficient performance
A++ classification with COP up to 4.24 - A7/W35°C
Technical Information
| AEROTOP L | 54 | 61 | 65 | 79 | 88 | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Energy efficiency class* Room heating | W35 | A++ | A++ | A++ | A++ | - | |||||||||||||||||||||||||||||||||||||||||
| Sound power level according to EN 12102 | dB(A) | 83 | 83 | 84 | 85 | 85 | |||||||||||||||||||||||||||||||||||||||||
| Dimensions H x W x D | mm | 2337 x 2152 x 1130 | 2337 x 2152 x 1130 | 3190 x 2155 x 1130 | 3190 x 2155 x 1130 | 3190 x 2155 x 1130 | |||||||||||||||||||||||||||||||||||||||||
| Weight | kg | 580 | 580 | 780 | 780 | 780 | |||||||||||||||||||||||||||||||||||||||||
| Heating | |||||||||||||||||||||||||||||||||||||||||||||||
| Nominal power (max.) according to EN 14511/ EN 14825 [kW] | A2/W35 | 50.4 (50.4) | 59.4 (59.4) | 70.7 (70.7) | 76.8 (76.8) | 83.7 (83.7) | |||||||||||||||||||||||||||||||||||||||||
| A-7/W35 | 39.4 (39.4) | 47.9 (47.9) | 55.2 (55.2) | 60.4 (60.4) | 65.9 (65.9) | ||||||||||||||||||||||||||||||||||||||||||
| Coefficient of performance according to EN 14511 [COP] | A-2/W35 | 3.7 | 3.6 | 3.6 | 3.5 | 3.5 | |||||||||||||||||||||||||||||||||||||||||
| A-7/W35 | 3 | 3.7 | 4.2 | 4 | 3.8 | ||||||||||||||||||||||||||||||||||||||||||
| Cooling | |||||||||||||||||||||||||||||||||||||||||||||||
| Nominal power [kW] | A35 / W18 | 73.8 | 84.5 | 98.2 | 108 | 117 | |||||||||||||||||||||||||||||||||||||||||
| Energy Efficiency Ratio [EER] | A35 / W18 | 4 | 3.7 | 4.2 | 4 | 3.8 | |||||||||||||||||||||||||||||||||||||||||
* Energy efficiency class: Room heating in accordance with Regulation EU 811/2013
Product label range: A+++ to D
