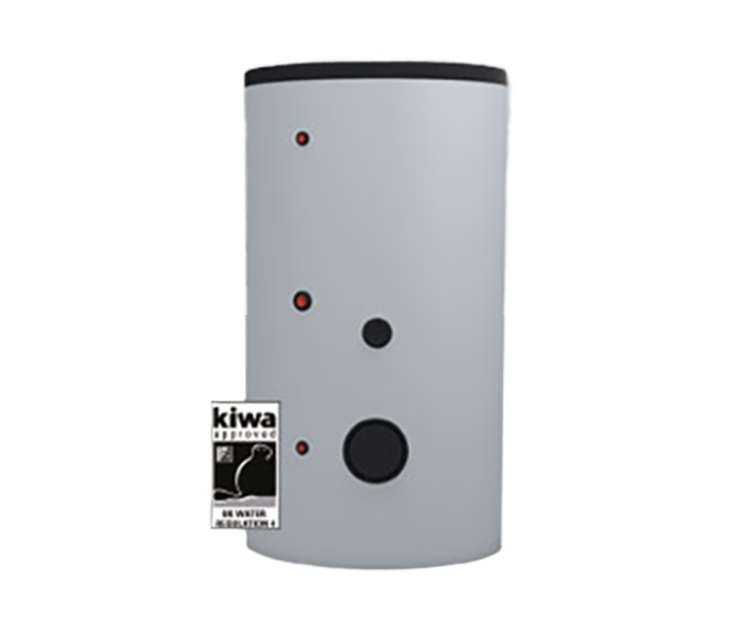

INOX-MAXI SSC2

Calorifier - 503 to 2018 Litres

The Inox-Maxi SSC2 is a twin coil stainless steel calorifier with extremely low standby heat losses and a versatile range of six models, with capacities from 503 to 2018 litres.

Key features at a glance

Large connections

Large connections on the cylinder coil which reduces the pressure drop within the unit.

Maximum heat retention

Extremely low standby heat loss as low as 2.3 kW/24hr.

Unique coil design

Unique coil design to reduce cold spots and to assist with annual maintenance.

Large coil surface area

The specially designed coil has a larger surface area providing better and faster heat transfer.

Technical Information

Inox-Maxi SSC2	Model	500	800	1000	1300	1500	2000
Storage capacity (total)	Litres	503	759	902	1272	1398	2018
Upper coil heated volume	Litres	162	297	329	465	528	793
Upper coil output at primary temp 80/60°C	kW	21	25	28	36	36	40
Continuous DHW delivery ΔT 50°C with primary temp 80/60°C	Litres/hour	359	423	490	624	624	692
Lower coil output at primary temp 80/60°C	kW	41	48	62	69	69	76
Continuous DHW delivery ΔT 50°C with primary temp 80/60°C	Litres/hour	699	828	1067	1186	1186	1305
Standby heat loss (DHW temperature 65°C)	kW/24hr	2.3	2.7	2.8	3.5	3.8	4.3
Energy class		C	C	C	C	C	C
Width	mm	750	1010	1020	1170	1220	1470
Height	mm	1790	1943	2192	2212	2197	2070
Weight empty/full	kg	138/641	191/959	220/1122	270/1542	285/1683	415/2433
