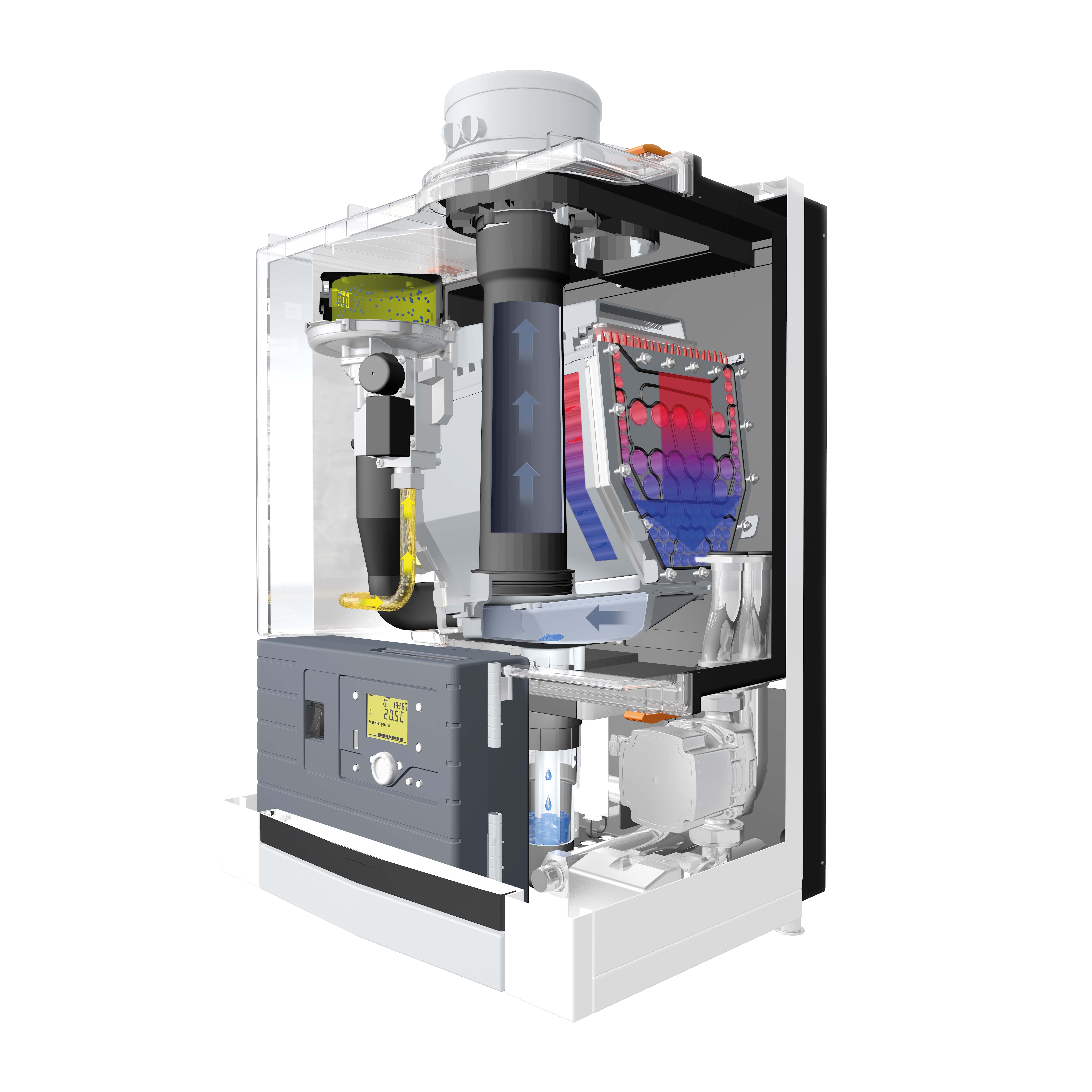

The THISION® S PLUS combines an elegant and space-saving design with ultra-quiet operation. The technically outstanding stainless steel heat exchanger ensures permanent condensation, guaranteeing a long lifespan and lasting comfort. Thanks to the integrated control system of the latest generation, even complex heating systems with integrated solar thermal energy and buffer cylinders can be conveniently controlled.
Thanks to its low hydraulic resistance, the THISION® S PLUS can be used universally and can also withstand unknown hydraulic conditions in renovation projects. With its exceptionally high flow rates, it is also ideal for new builds and complex systems.
Unbeatable efficiency
The THISION® S PLUS boasts an impressive A+ rating in accordance with ErP. Its robust stainless steel heat exchanger works very efficiently thanks to permanent condensation, even at full load, and is extremely durable.
Minimal noise
With a maximum of 39 dB(A) at full load, the THISION® S PLUS 13 is quieter than a computer, making it one of the quietest boilers on the market.
Low NOx emissions
NOx emissions harm our health (respiratory problems) and the environment (global warming, smog). With values starting from 18 mg/kWh (13 kW), the THISION® S PLUS already meets future legal limits today.
Extremely flexible
7 variants from 13 - 54 kW, suitable for all gas types (except the 15 kW model which is only suitable for natural gas). The latest generation of controllers makes controlling complex systems simple and convenient. A variety of cylinder solutions and comprehensive accessories provide versatile options for different applications.
Ready for the future: H2-ready
The gas condensing boiler is already suitable and certified for operation with up to 30% hydrogen.
| THISION S PLUS | 13 | 15 | 19 | 24 | 34 | 46 | 54 |
|---|---|---|---|---|---|---|---|
| Performance min. - max. 40/30°C [kW] | 3.9 - 14.4 | 2.2 - 17.1 | 3.9 - 19.7 | 3.9 - 23.9 | 5.3 - 36.3 | 9.8 - 48.7 | 9.8 - 57.3 |
| Energy efficiency class* Room heating | A / A+ | A / A+ | A / A+ | A / A+ | A / A+ | A / A+ | A / A+ |
| Energy efficiency class** Hot water preparation Profil XL | - | - | - | - | - | - | - |
| Sound power level [dB(A)] | 40 | 39 | 43 | 46 | 50 | 51 | 51 |
| Dimensions H x W x D [mm] | 680 x 500 x 395 | 680 x 500 x 395 | 680 x 500 x 395 | 680 x 500 x 395 | 680 x 500 x 395 | 680 x 660 x 395 | 680 x 660 x 395 |
| Weight [kg] | 50 | 50 | 50 | 50 | 53 | 64 | 64 |
Energy efficiency class: Room heating: Product/System in accordance with Regulation EU 811/2013
Product label range: A+++ to D
System label range: A+++ to G
Energy efficiency class: Domestic hot water preparation: Product/System in accordance with Regulation EU 811/2013
Product label range: A+ to F
System label range: A+++ to G
Our highly trained and knowledgeable staff can help you by providing both office and field based support.
MORE ABOUT SERVICE AT ELCO
Our customers love their heating solutions from ELCO. View our detailed case studies showcasing successful projects across various industries.
VIEW CASE STUDIES
As an innovator in heating technologies in Europe, the ELCO team has worked hard to develop products that will contribute to a sustainable future worldwide.
The THISION® S PLUS is already certified for operation with up to 20 % hydrogen and biomethane.
More about sustainabilityExhaust pipes
A wide range of different exhaust systems for all applications and systems. Exhaust gas pipes are available in rigid or flexible versions. The exhaust components can be supplied in plastic, aluminium and stainless steel. Nominal diameters from DN60 to DN150 are available. With modern exhaust gas systems, expensive chimney renovations are unnecessary and installation is quick and easy.
Water heater
ELCO also offers a large selection of different cylinders in stainless steel or enamelled for the provision of domestic hot water for many different system concepts. ELCO cylinders combine efficiency, benefits and hygiene requirements in an attractive design.
Plate heat exchangers and valves
Plate heat exchangers and valves for separating the heating hydraulics into boiler circuit and consumer circuit. This means that individual local requirements can be taken into account when constructing the system - whether for new builds or renovations (e.g. special water quality requirements) - and optimum energy utilisation can be achieved.
ClipIns and expansion controllers
ClipIns and expansion controllers are suitable for a wide range of applications, e.g. expansion to include additional heating circuits, solar integration, system separation or integration into building management systems and other useful functions.
Product Brochure
THISION S PLUS
Product fiche ErP
THISION S PLUS & Combi
