INOX-MAXI SSC1

Calorifier - 503 to 2018 Litres

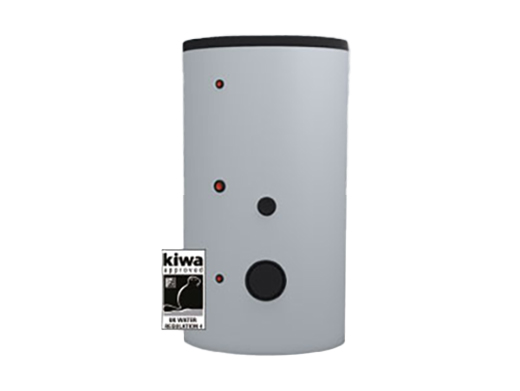

The Inox-Maxi SSC1 is a stainless steel calorifier with extremely low standby heat losses and a versatile range of six models, with capacities from 503 to 2018 litres.

Key features at a glance

Large connections

Large connections on the cylinder coil which reduces the pressure drop within the unit.

Maximum heat retention

Extremely low standby heat loss as low as 2.5 kW/24hr.

Unique coil design

Unique coil design to reduce cold spots and to assist with annual maintenance.

Large coil surface area

The specially designed coil has a larger surface area providing better and faster heat transfer.

Technical Information

Inox-Maxi SSC1	Model	500	800	1000	1300	1500	2000
Storage capacity	Litres	503	759	902	1272	1398	2018
Output at primary temp 80/60°C	kW	40.7	48.2	62	69	69	75.9
Continuous DHW delivery ΔT 50°C with primary temp 80/60°C	Litres/hour	699	828	1067	1186	1186	1305
Continuous DHW delivery ΔT 50°C with primary temp 80/70°C	Litres	773	932	1187	1314	1314	1442
Standby heat loss (DHW temperature 65°C)	kW/24hr	2.3	2.7	2.8	3.5	3.8	4.3
Energy class		C	C	C	C	C	C
Width	mm	750	1010	1020	1170	1220	1470
Height	mm	1790	1943	2192	2212	2197	2070
Weight empty/full	kg	100/603	160/919	185/1087	250/1522	262/1660	377/1470
