TRIGON® XL

Gas Condensing Boiler
Outputs from 35 kW to 570 kW

The TRIGON® XL represents a significant step forward in heating technology. Thanks to its extremely ﬂexible conﬁgurations, well thought-out design and a wealth of available models, the gas condensing boiler is perfectly suited to a wide range of commercial applications. Get to know the next generation of floor-standing gas condensing boilers.

Compact, powerful performance for commercial applications

The TRIGON® XL represents a significant step forward in heating technology. With extremely flexible configurations, clever design and a wide range of models available, the boiler is perfect for a variety of commercial applications. It is time to discover the next generation of floor standing boilers.

Efficiency

Superb heat transfer and constant high efficiency during its entire lifecycle.

Intelligent installation

Allows easy installation - also into buildings with restricted access.

Flexibility

TRIGON® XL - the most flexible boiler for every commercial application.

Key features at a glance

Highest efficiency

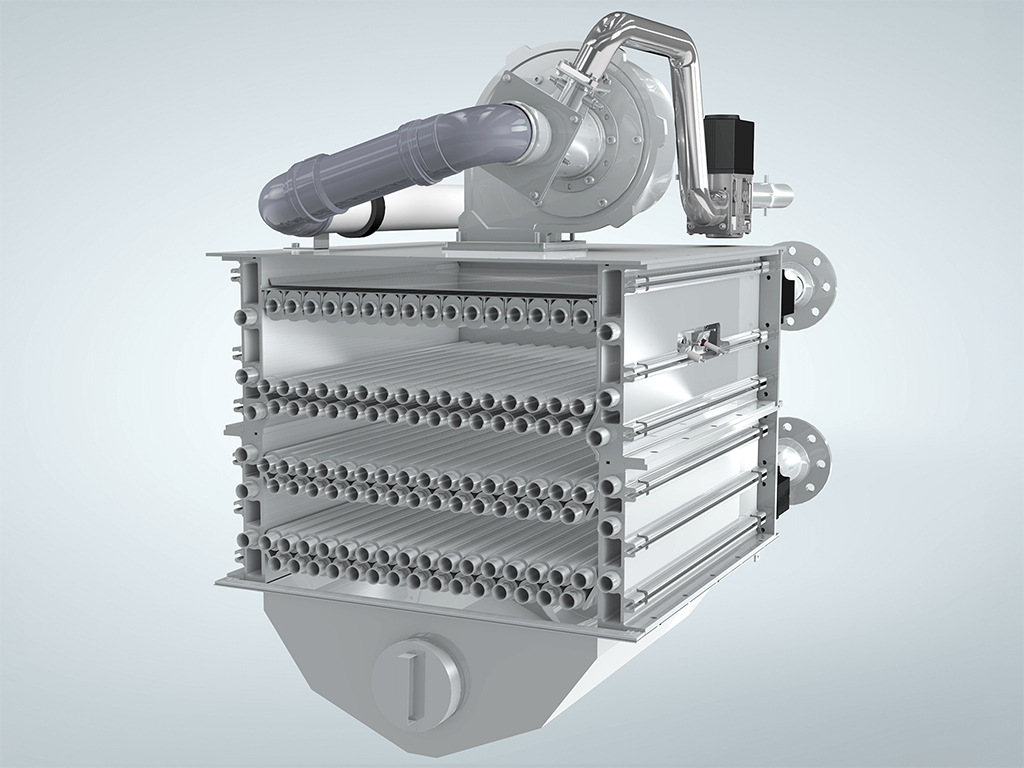

The advanced burner design makes the TRIGON® XL the most technically advanced and powerful appliance in its class. Equipped with a stainless steel heat exchanger, the TRIGON® XL is specially designed for optimum energy efﬁciency and performance over its entire lifespan.

Low emissions

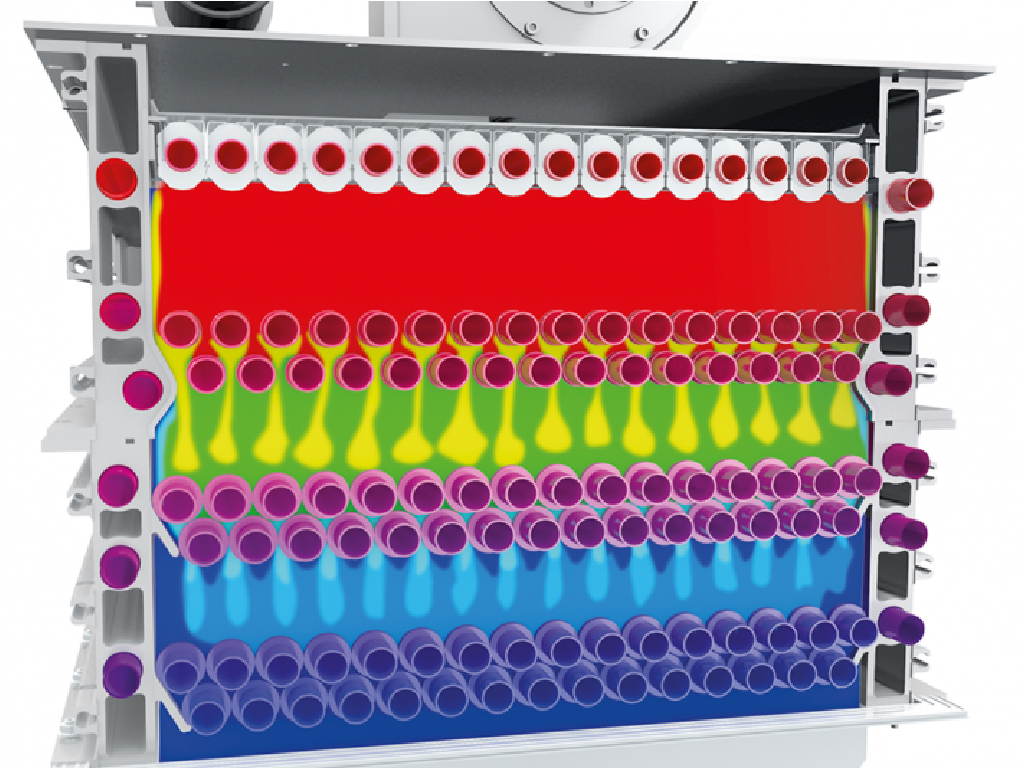

The water-cooled burner with cold flame and the optimised combustion zones achieve extremely low NOx and CO emissions that already meet future requirements.

Maximum flexibility

Thanks to its wide range of applications and the variety of control and system accessories, the TRIGON® XL can be customised to meet all the requirements of commercial heating systems.

Easy installation

All models are designed to fit through standard doors with a width of 76 cm. The gas condensing boiler is supplied with transport wheels for easy manoeuvring at the installation site.

Intelligent modular concept

All TRIGON® XL gas condensing boilers can be dismantled for easy installation at the installation site. This also makes it easy to install the boiler in buildings with restricted access.

Equipped for the future: H2-ready

The gas condensing boiler is already suitable and certified for operation with up to 20% hydrogen and biomethane.

Superb heat transfer and constant high efficiency during its entire lifecycle

TRIGON® XL designed for challenging environments. Its advanced burner design makes TRIGON® XL the most technologically advanced and best performing unit on the market. In combination with a robust and corrosion free stainless steel heat exchanger built for challenging working conditions. It is offering superb heat transfer and constant high efficiencies of up to 110% during its entire lifecycle. Stainless steel laser welded fin tubes made by advanced robot laser welding technology minimise heat losses between tube and fin. This guarantees the highest possible heat transfer from the extended heat exchanger surface vs. plain tubes.

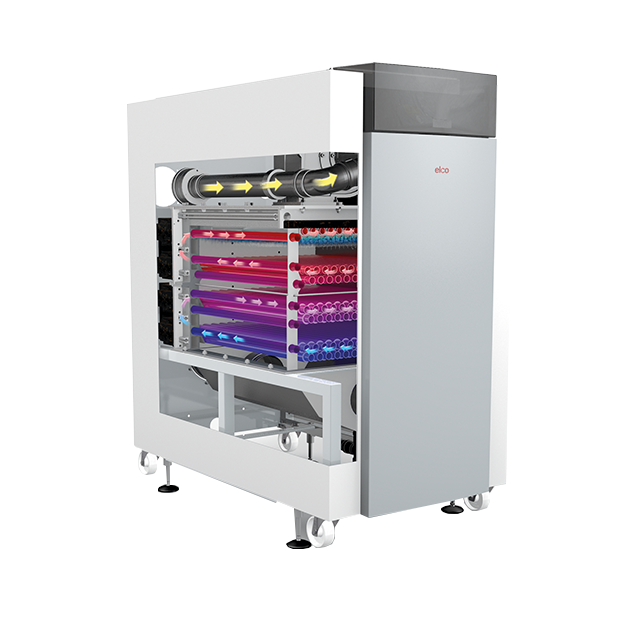

Description of the TRIGON XL premix burner system

Unique premix-burner system

A fully modulating, watercooled cold flame burner utilises a one-of-a-kind technology to provide reliable and robust performance.

Low emissions

The watercooled cold flame burner and the optimised combustion zone achieve extremely low NOx and CO emissions, which already comply with NOx class 6 requirements.
Lifetime high efficiency

By combining the unique premix-burner/heat exchanger system with the optimised controls, TRIGON® XL provides impressive lifetime high efficiencies of up to 110 %.

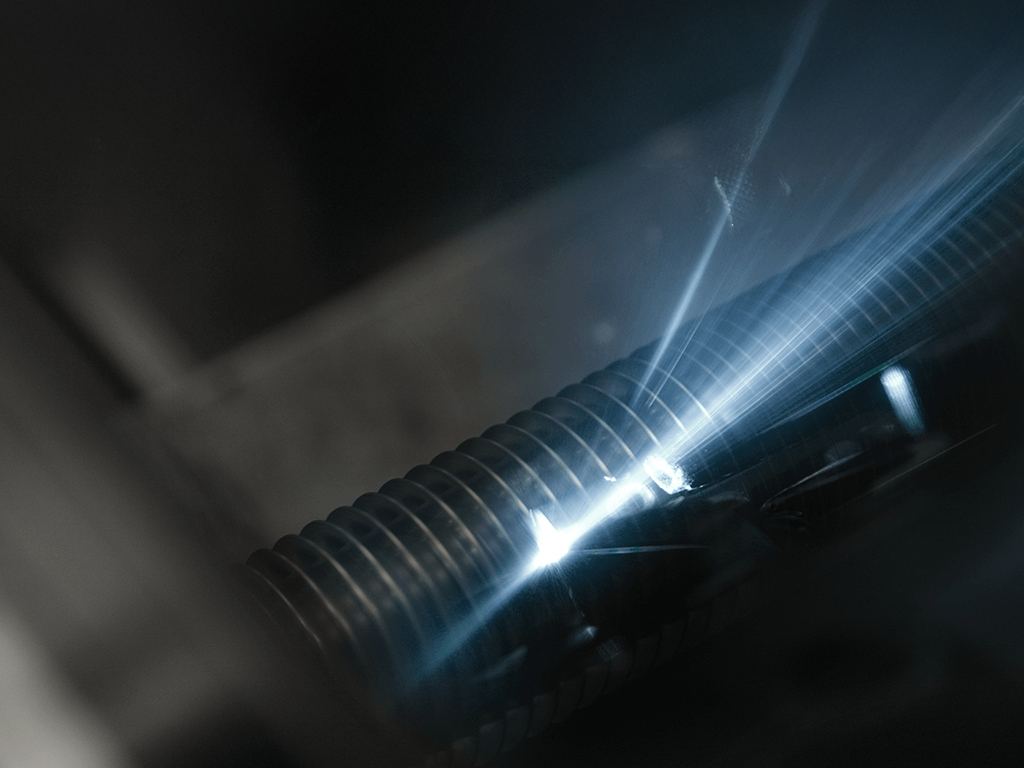

Stainless steel laser welded fin tube

Advanced robot laser welded technology minimises heat losses between tube and fin, guaranteeing superb heat transfer from the extended heat exchanger surface.

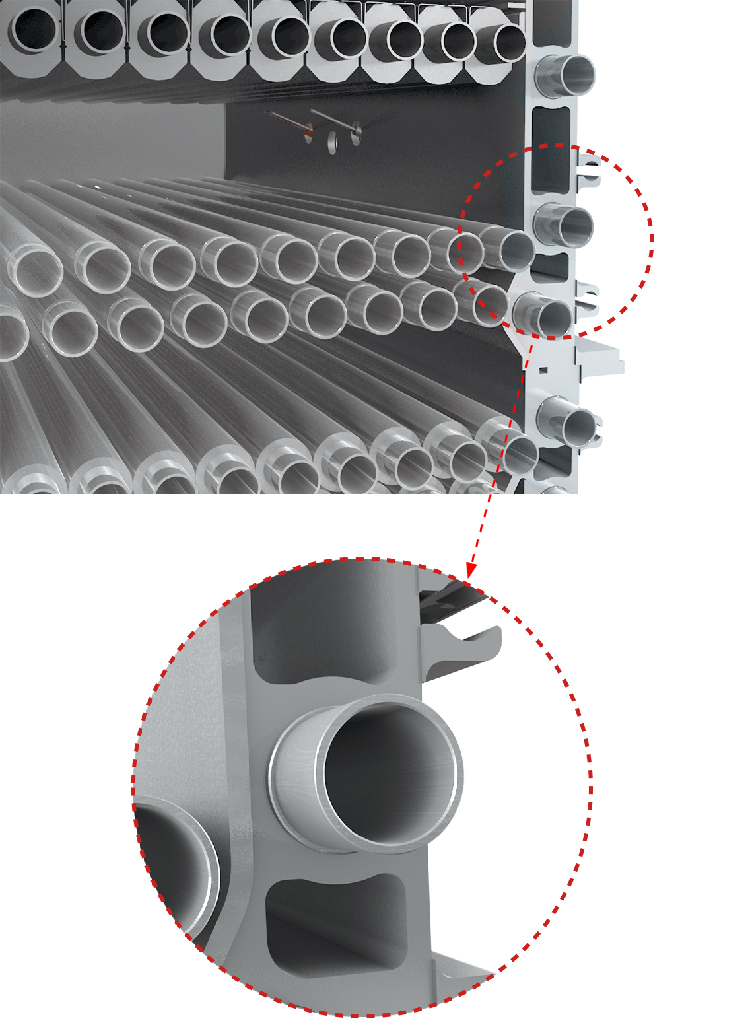

Water cooled combustion chamber

A carefully engineered hydroforming process fixes the cooling tubes inside the sidewalls, providing the highest possible thermal output.

Unique smart modular concept

With TRIGON® XL’s smart modular concept the boiler can be disassembled for easy on site handling. This also allows the boiler to be easily installed into buildings with restricted access. In combination with its lightweight construction the boiler fits perfectly into rooftop installations.

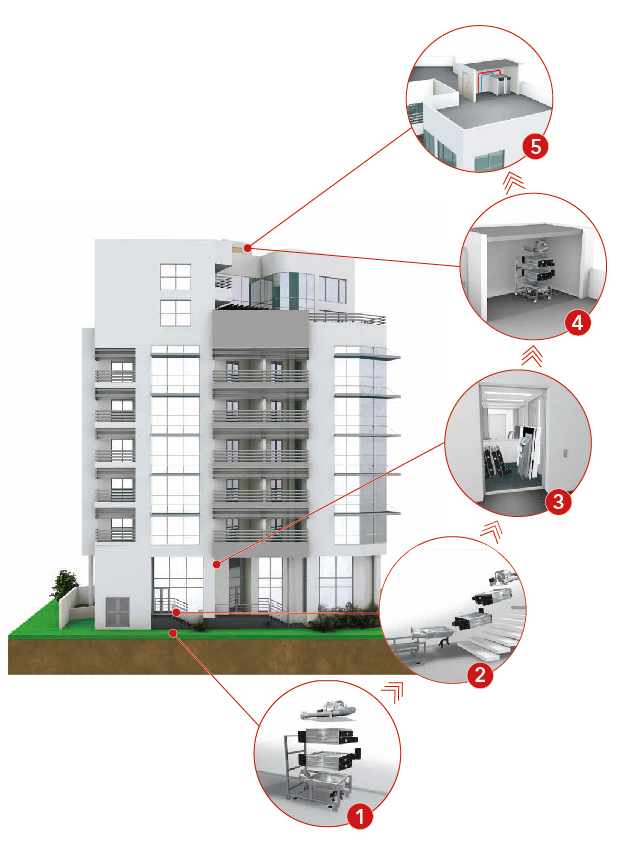

Sectional view of a multi-storey residential building with five highlighted points showing various modular heating and cooling systems

Smart and modular

1. Easy on site disassembling into pieces

2. Easy integration into buildings, even with restricted access

3. Modular concept allows transportation by standard elevator

4. Easy on site assembly without requirement for special tools

5. Best boiler for challenging commercial applications. Due to low running weight, also perfectly suitable for rooftop installations

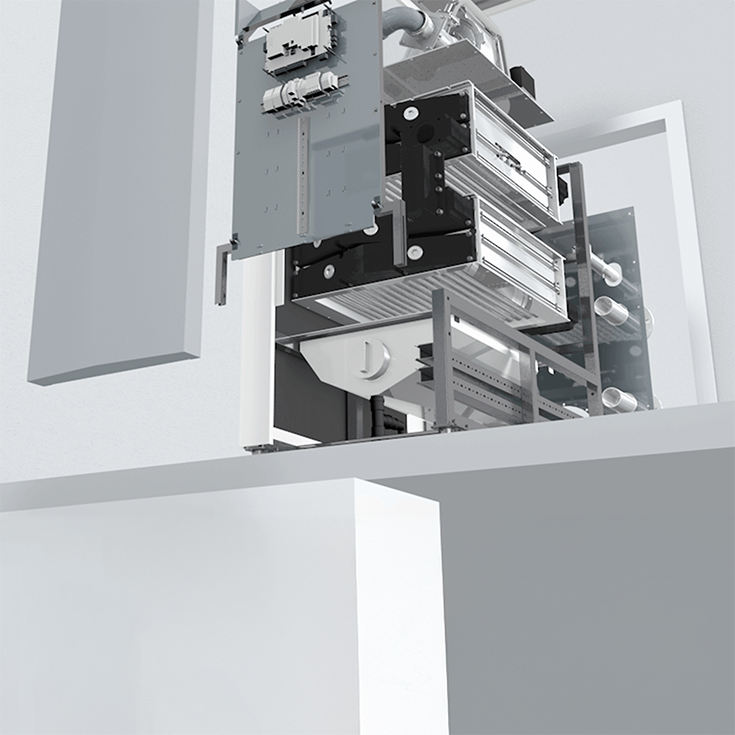

TRIGON XL in exploded view to illustrate the disassembly into individual parts for quick assembly

TRIGON XL mounted at the target location

Fast installation

The total time for disassembly and assembly takes a maximum of 0.5 working days.

Description of the easy transport of the TRIGON XL

Easy transportation and set up

The boiler is supplied with cargo wheels, which allows easy on site maneuvering. After positioning, the boiler can be levelled and lifted from the wheels by adjusting the feet.

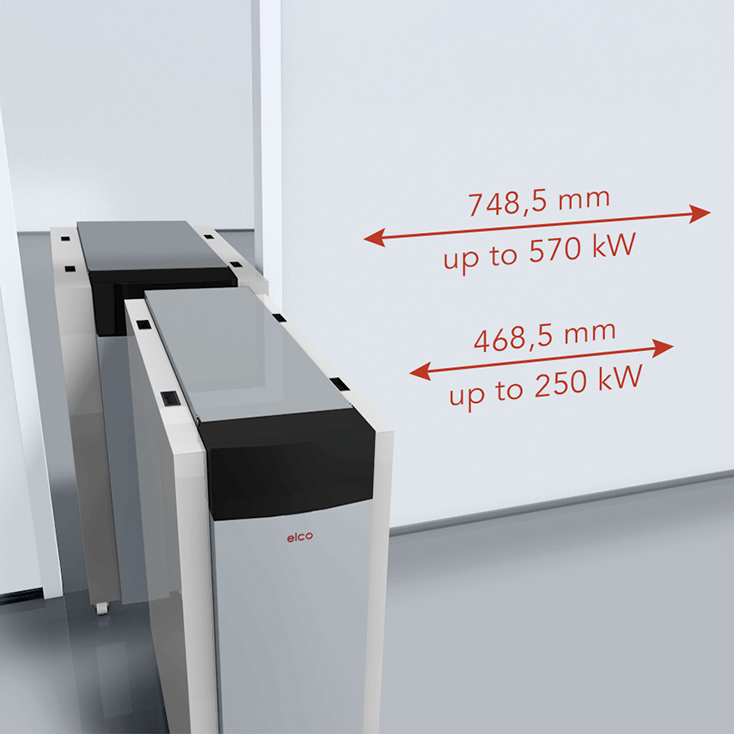

Compact dimensions

The range comprises 7 models with 2 widths which are designed to pass through standard 760 mm wide doors.

Flexible configurations

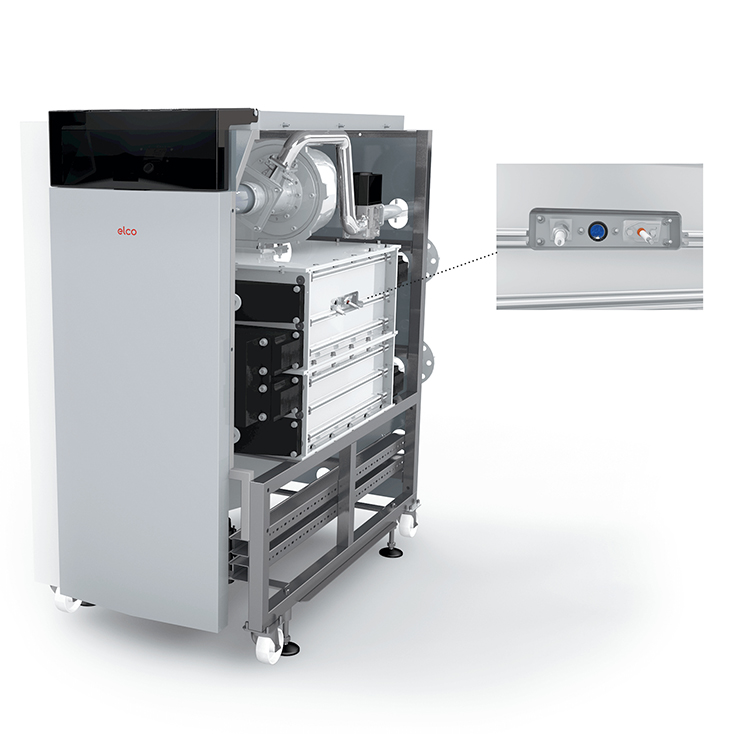

The inspection glass and ignition electrode can be fitted on either side of the boiler, allowing a more flexible boiler positioning on site.

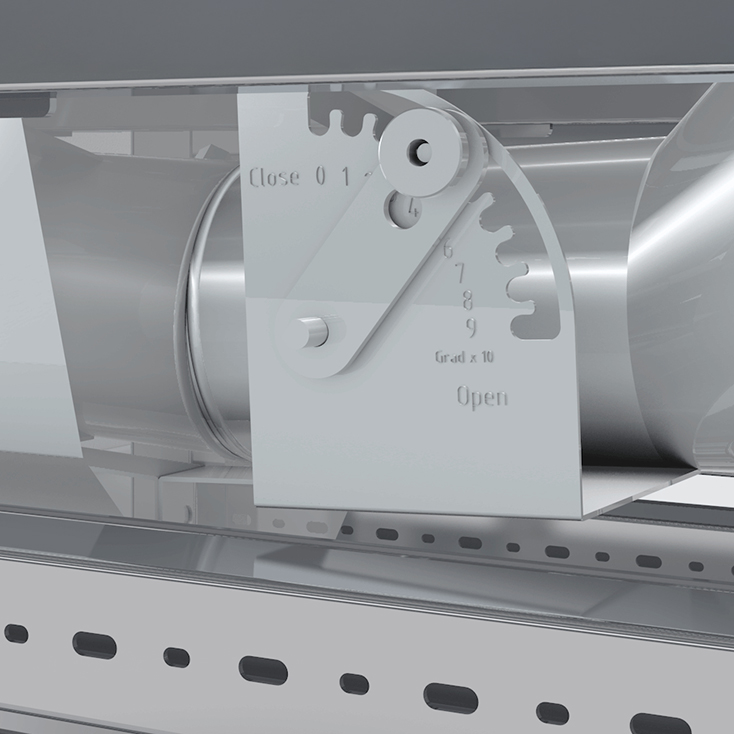

Simple commissioning

An integrated flue gas damper and rear flue connection provides an installer-friendly arrangement.

Extraordinary flexibility

TRIGON® XL’s stunning flexibility sets a new standard for commercial applications. An 8 bar maximum water pressure and 30 K flow/return temperature differential allows easy integration in complex systems, both in single and cascade applications.

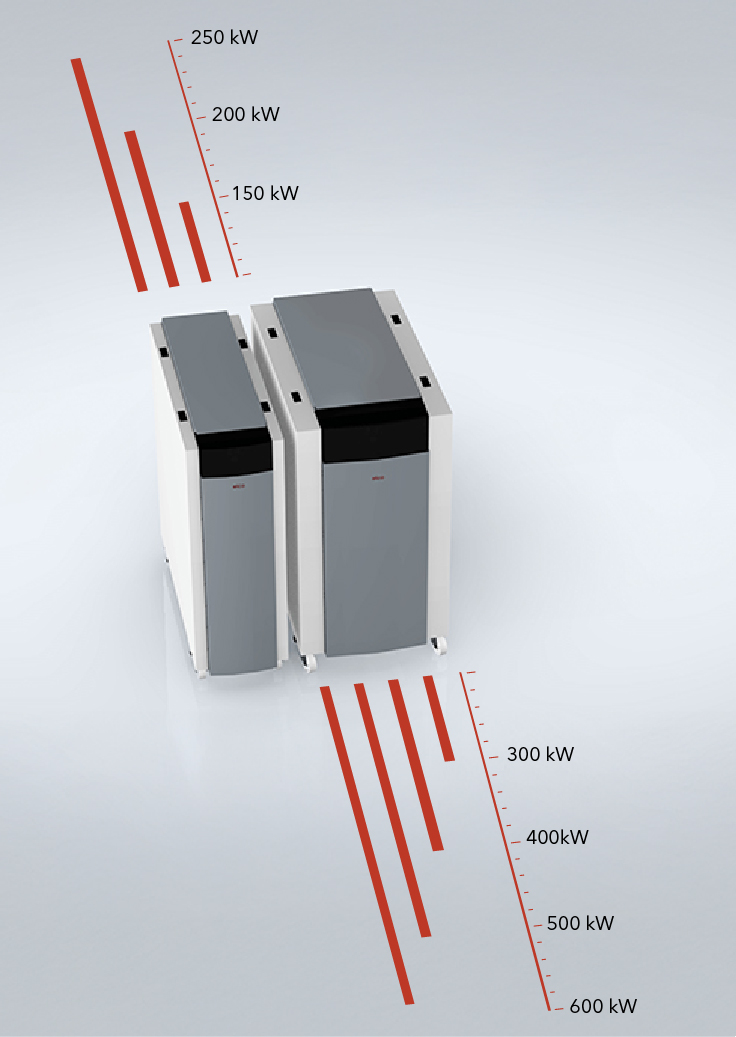

Performance classes

The TRIGON® XL boiler range comprises 7 models in outputs from 150 kW to 570 kW.

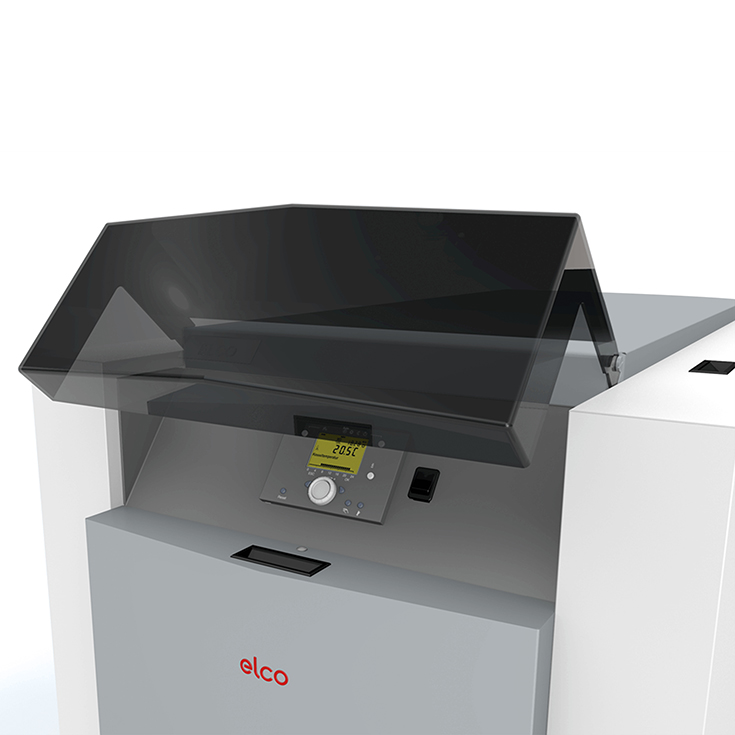

Modern heating control unit from Elco with digital display and swivelling protective cover, shown in close-up when open

Modern heating control unit from Elco with digital display and swivelling protective cover, shown in close-up when closed

Comprehensive control features

A clear text display with integrated master-slave cascade functionality (up to 8 boilers) makes commissioning simple. Plus, an upgraded module capacity provides straightforward connections for additional heating zones, solar systems or external heat sources.

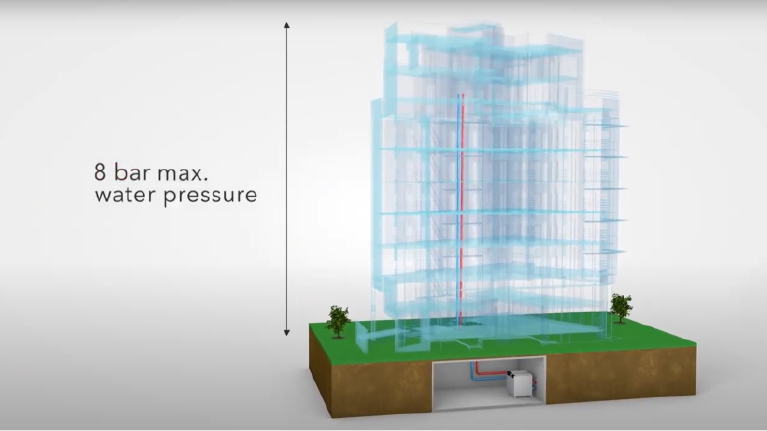

3D representation of a high-rise building with a heating system in the basement that can cope with a maximum water pressure of 8 bar. The heating system supplies all floors via vertical pipes

Wider applications

With an 8 bar maximum water pressure, the TRIGON® XL boiler is compatible with higher buildings without the need for hydraulic system separation. Plus, a 30 K flow/return temperature differential allows easier integration with district heating systems while maintaining optimum efficiency.

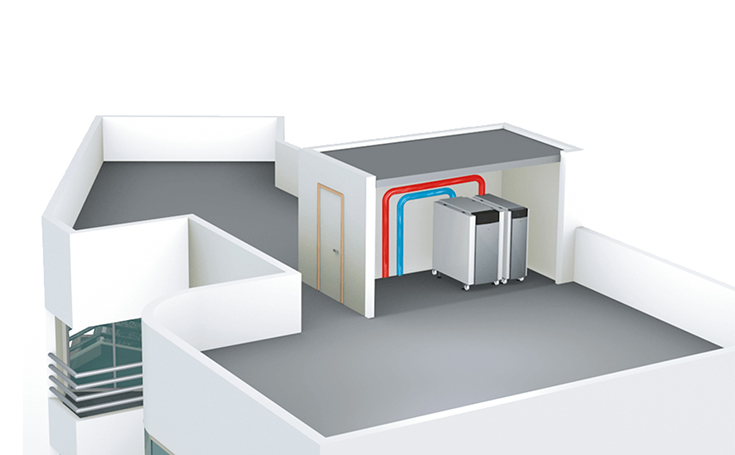

Roof of a multi-storey building on which the TRIGON XL was mounted

Lightweight construction

By utilising low water content technology, the boiler can be easily installed on a rooftop – while also delivering superb response times and reduced running costs.

Solutions

First Class Service

Our highly trained and knowledgeable staff can help you by providing both office and field based support.

MORE ABOUT SERVICE AT ELCO

Case Studies

Our customers love their heating solutions from ELCO. View our detailed case studies showcasing successful projects across various industries.

VIEW CASE STUDIES

Hydrogen - for a greener future

As an innovator in heating technologies in Europe, the ELCO team has worked hard to develop products that will contribute to a sustainable future worldwide.

The TRIGON® XL is already certified for operation with up to 20 % hydrogen and biomethane.

More about sustainability

Technical Data

Technical information

TRIGON XL	150	200	250	300	400	500	570
Performance min. - max. 40/30°C [kW]	35.4 - 151.2	47.4 - 202.3	53.4 - 252.3	64.2 - 303.3	85.6 - 404.3	106.9 - 505.2	135.1 - 572.8
Sound power level [dB(A)]	70	70	70	70	77	77	77
Dimensions H x W x D [mm]	1457 x 466 x 1349	1457 x 466 x 1499	1457 x 466 x 1649	1460 x 746 x 1348	1460 x 746 x 1496	1460 x 746 x 1646	1460 x 746 x 1769
Weight [kg]	290	332	366	434	496	540	595

Dimensions

TRIGON® XL 150, 200 & 250

A = Air intake connection | D = Flue gas connection | G = Gas connection| S = Condensate connection

TRIGON® XL 300, 400, 500 & 570

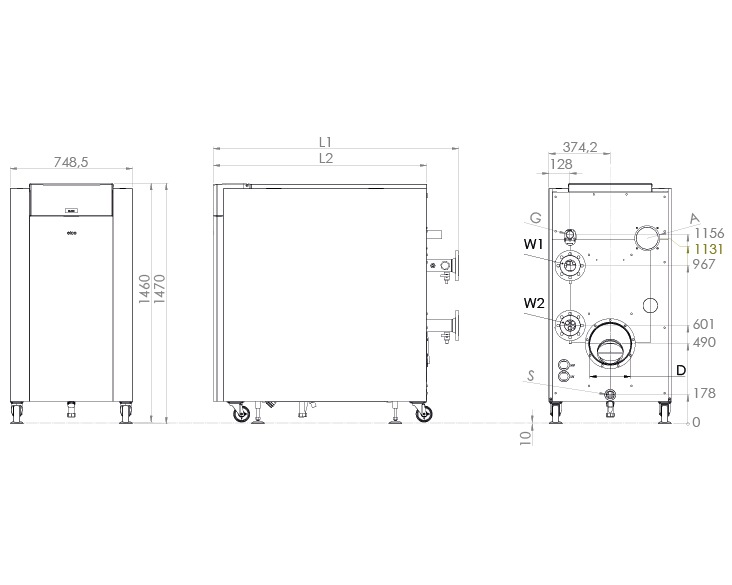

Technical drawing with dimensions of the TRIGON XL 300, 400, 500 und 570

L1 = Boiler length with water connection | L2 = Boiler length without water connection | W1/W2 = Water connections

Accessories

Complete Plug & Play accessories programme

Pre-assembled system kits for hydraulic diverters and plate heat exchangers based on the plug & play principle make planning, installation and assembly extremely easy.

Hydraulic system separation by means of a diverter valve or plate heat exchanger

Plate heat exchangers and valves for separating the heating hydraulics into a boiler circuit and consumer circuit. This allows the system to be adapted to local requirements - whether for new builds or renovations (e.g. special water quality requirements) - and optimum energy utilisation to be achieved.

Extensive range of control accessories

An extensive range of control accessories is available for a wide variety of applications, e.g. expansion to include additional heating zones, integration of solar energy, system separation or integration into building management systems and other useful functions.
