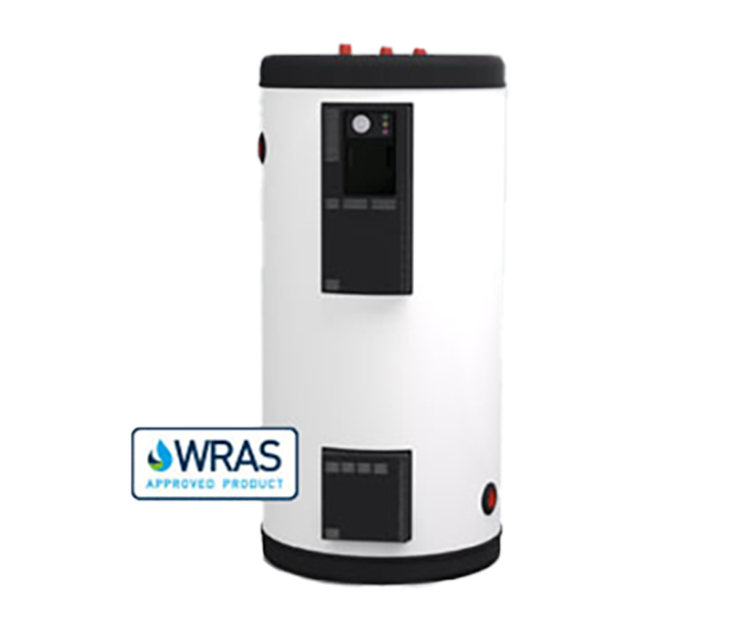

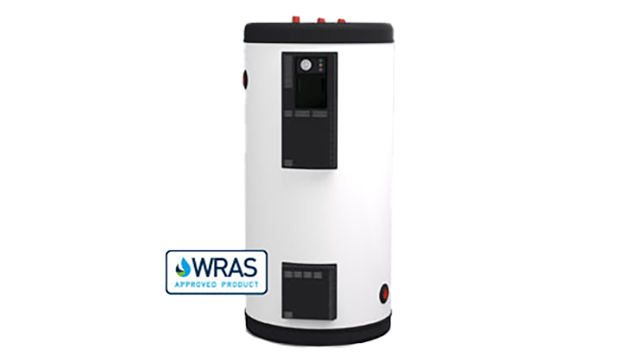

GEMINI HSC

Calorifier - 193 to 462 Litres

GEMINI HSCi is a range of high performance stainless steel tank-in-tank Indirect hot water calorifiers. Suitable for tank-fed or unvented applications and in 193, 286 and 462 litre capacities.

Key features at a glance

High-performance

The Gemini range utilises the tank-in tank principle of construction. This principle provides a very large heat exchange surface area for high performance and rapid response.

Compliance assurance

Approved to the requirements of the Water Regulations 1999, by the Water Research Advisory Scheme (WRAS).

A wide range of sizes

This range includes three models from 200 litre through to 500 litre capacity, with first hour performance up to 1974 litres at ΔT 50°C.

Robust construction

The product is finished using injection moulded rigid PVC top and base covers, plus a removable padded vinyl jacket.

Technical Information

Gemini HSCi	Model	200I	300I	500I
Storage capacity	Litres	193	286	462
Output at primary temp 80/60°C	kW	23	35	45
Continuous DHW delivery ΔT 50°C with primary temp 80/60°C	Litres/hour	397	605	777
Continuous DHW delivery ΔT 50°C with primary temp 80/70°C	Litres/hour	754	1148	1474
Standby heat loss (DHW temperature 65°C)	kW/24hr	1.5	2.4	2.5
Energy class		B	C	C
Weight empty/full	kg	78/334	109/481	151/721
