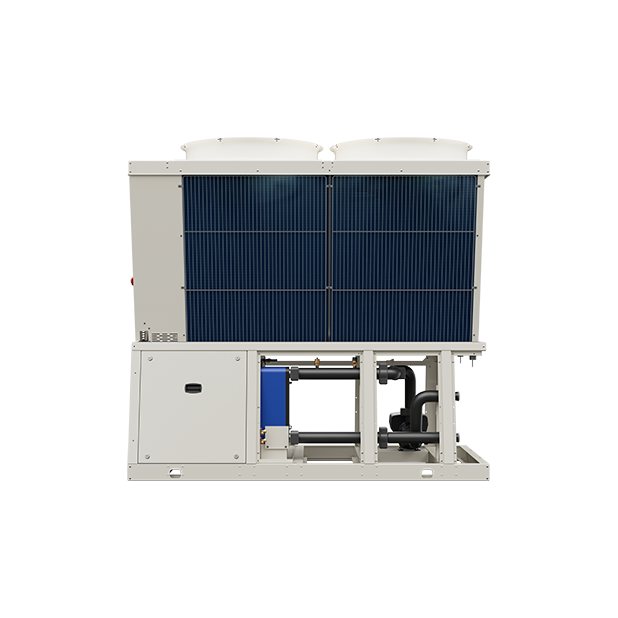

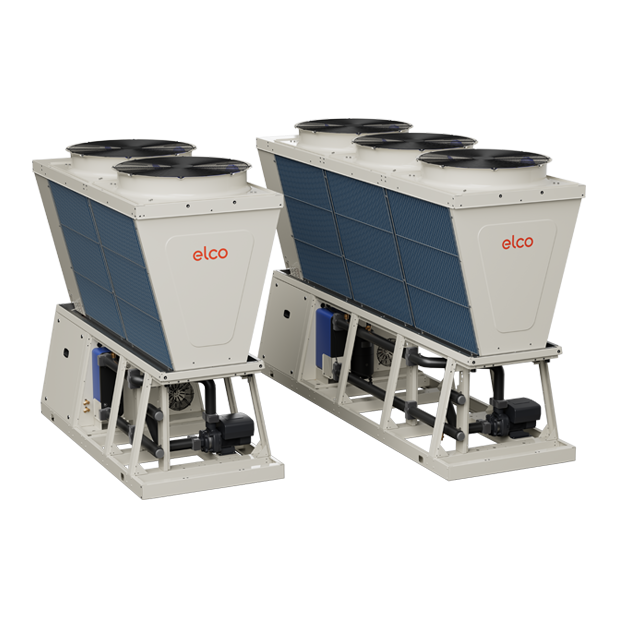

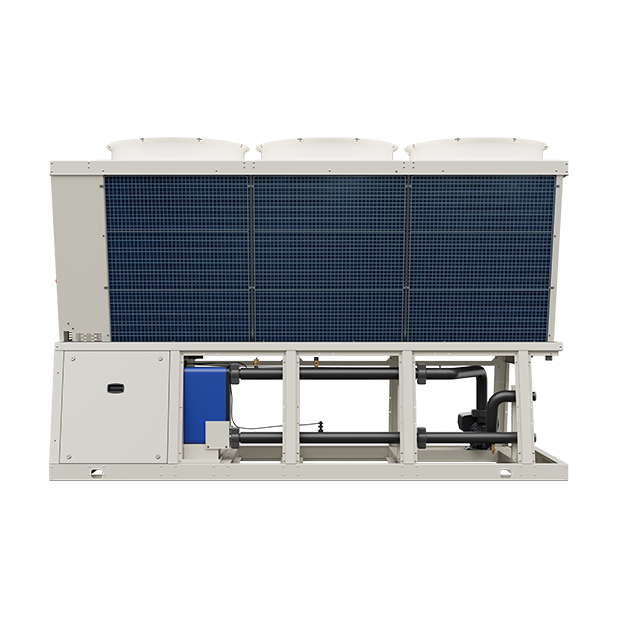

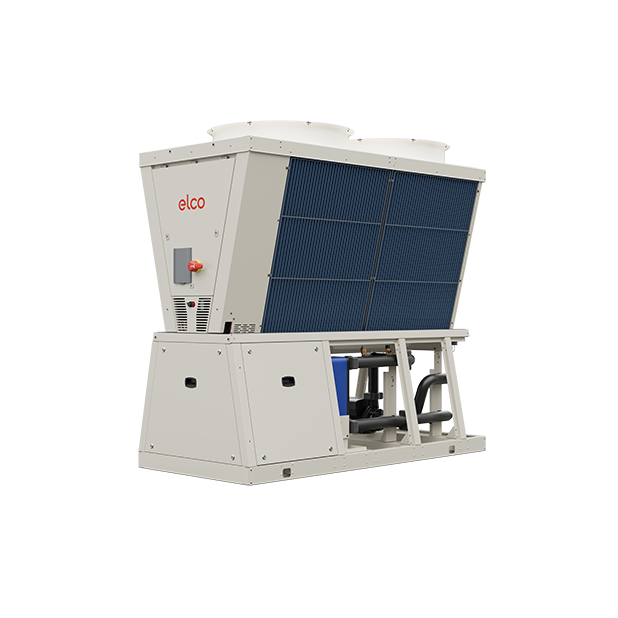

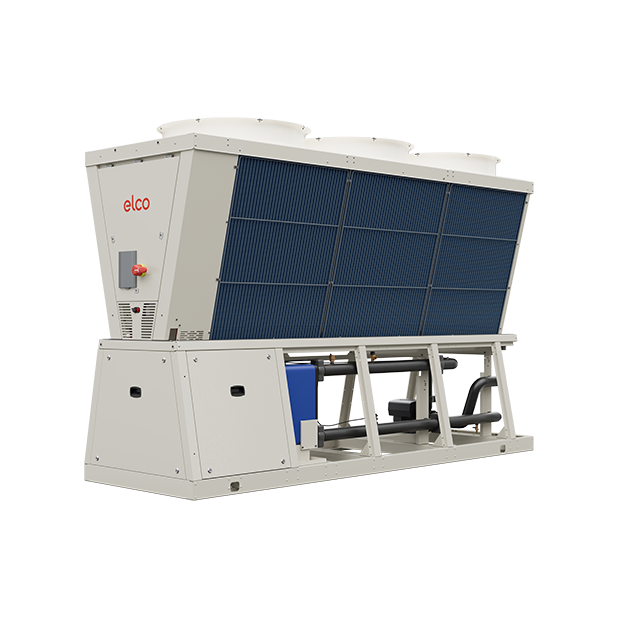

AEROTOP® EVO P

Air-to-water heat pump
Outputs from 40 kW to 84 kW

The AEROTOP® EVO P is a full-inverter air-to-water heat pump for commercial heating, cooling and domestic hot water. With seven models from 40 to 84 kW, it offers flexible capacity options for a wide range of commercial applications. It delivers flow temperatures of up to 75 °C and is designed for operation at outdoor air temperatures down to -20 °C.¹

Key features at a glance

Energy efficiency up to A+++

Depending on the model, the AEROTOP® EVO P reaches up to A+++ at W35 and a SCOP of up to 4.70.¹

High flow temperatures up to 75 °C

Flow temperatures of up to 75 °C support new-build and renovation applications, subject to the specific system design.²

Scalable up to 1,350 kW

Seven models from 40 to 84 kW are available. Up to 16 units can be cascaded to provide heating capacity of up to 1,350 kW.³

Integrated protective measures

Physical separation, gas-leak sensors, an ATEX-certified extraction fan and a degasser are integrated into the system. Five models contain less than 5 kg of R290 per refrigerant circuit.⁴

Three configurable acoustic modes

Standard, Silent and Super-Silent are software-selectable. Depending on the mode, sound power level can be reduced by up to 10 dB(A).⁵

Flexible system integration

The AEROTOP® EVO P can be used as a stand-alone unit, in cascade or alongside an existing gas or oil boiler.⁶

Modulating performance control

Inverter technology adjusts compressor output to system demand. Operating data is available on the HMI and via Modbus.⁷

¹ Seasonal space heating energy efficiency class A+++ (scale A+++ to D) for EVO P 40, 47, 70 and 84, average climate at W35, and A++ for all models at W55; Regulation (EU) No 811/2013. SCOP: AEROTOP® EVO P 70 at W35, average climate; EN 14825:2022.

² Flow temperature: All AEROTOP® EVO P models; EN 14511 at A-5, compressor partialisation. System design: Subject to project-specific assessment of heat demand, system design and operating temperatures.

³ 16 × AEROTOP® EVO P 84; EN 14511 (A7/W35).

⁴ AEROTOP® EVO P 40, 47, 50, 56, 61: R290 charge < 5 kg per refrigerant circuit; DIN EN 378-1:2021-06.

⁵ Acoustic modes are software-selectable on site, per unit, with no hardware change. Values are the reduction in A-weighted sound power level (LwA) versus Standard mode, measured to EN ISO 9614-2 and declared per EN 12102-1 for all EVO P sizes 40–84 at rated conditions. Because they limit compressor and fan speed, Silent and Super-Silent mode also reduce the maximum available heating and cooling output – by up to approx. 13% and approx. 27% respectively at rated conditions.

⁶ Hybrid integration is subject to project-specific heat demand, hydraulics, controls, operating conditions and local requirements.

⁷ Depending on system demand, system design and operating conditions, this can support part-load operation and help manage start-stop cycling.

Technical Information

Technical Data AEROTOP® EVO P Outdoor Unit
AEROTOP® EVO P Outdoor Unit	Unit	Standard / Regulation	40	47	50	56	61	70	84
Energy efficiency class for space heating at 35 °C*	-	EU 811/2013	A+++	A+++	A++	A++	A++	A+++	A+++
Energy efficiency class for space heating at 55 °C*	-	EU 811/2013	A++	A++	A++	A++	A++	A++	A++
Seasonal space heating efficiency (ETA_s) (35 °C) / SCOP	%/-	EN 14825	177/4.51	175/4.45	171/4.36	169/4.29	166/4.22	185/4.70	179/4.54
Seasonal space heating efficiency (ETA_s) (55 °C) / SCOP	%/-	EN 14825	139/3.54	137/3.51	137/3.51	136/3.47	133/3.41	142/3.63	141/3.60
A7/W35 nominal heating capacity / COP	kW/-	EN 14511	40.1/3.92	46.8/3.71	50.4/3.81	55.8/3.78	61.0/3.73	70.2/3.91	84.4/3.74
A7/W45 nominal heating capacity / COP	kW/-	EN 14511	39.9/3.11	45.2/3.08	55.1/3.19	61.5/3.13	68.5/2.92	78.6/3.14	85.9/3.01
A7/W55 nominal heating capacity / COP	kW/-	EN 14511	37.0/2.71	42.9/2.57	47.4/2.67	51.2/2.60	55.7/2.55	65.9/2.74	76.6/2.56
A35/W18 nominal cooling capacity / EER	kW/-	EN 14511	42.6/4.28	46.8/3.99	55.6/3.66	59.7/3.63	64.7/3.41	79.9/4.23	86.1/3.90
A35/W7 nominal cooling capacity / EER	kW/-	EN 14511	34.9/2.84	38.5/2.81	49.9/2.58	54.0/2.46	58.2/2.35	67.8/2.86	72.7/2.64
Seasonal cooling efficiency (SEER) (W7)	-	EN 14825	5.36	5.20	4.73	4.58	4.36	5.47	5.30
Maximum flow temperature**	°C	EN 14511	75	75	75	75	75	75	75
Minimum outdoor temperature (heating)	°C	-	-20	-20	-20	-20	-20	-20	-20
Sound Power LwA ErP	dB(A)	EN 12102	68	68	69	69	69	69	69
Sound Power LwA – Standard Mode	dB(A)	EN ISO 9614-2	75	75	77	77	78	78	79
Sound Pressure – Standard Mode (1 m)	dB(A)	EN ISO 9614-2	57	57	59	59	60	59	60
Refrigerant type: R290 with GWP₁₀₀ = 0.02 / Charge	kg	EU 2024/573	4.9	4.9	4.5	4.5	4.5	10	10
Number of compressors	No	-	1	1	1	1	1	2	2
Full load current (F.L.A.)	A	-	34.9	34.9	53.3	53.3	53.3	65.8	65.8
Full load power input (F.L.I.)	kW	-	22.0	22.0	34.0	34.0	34.0	41.8	41.8
Water content (internal exchanger)	l	-	6.2	6.2	8.4	8.4	8.4	10.7	10.7
Unit weight (operation/shipping)	kg	-	714/694	714/694	760/740	760/740	760/740	1021/1001	1021/1001
Unit dimensions (W×H×D)	mm	-	2384×2240×1094	2384×2240×1094	2384×2240×1094	2384×2240×1094	2384×2240×1094	3402×2240×1094	3402×2240×1094
Power supply	V	-	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N	400/3~/50 + N

* Energy efficiency class space heating: Scale A+++ to D

** Design limit value; actual achievable conditions depend on outdoor temperature and system design
