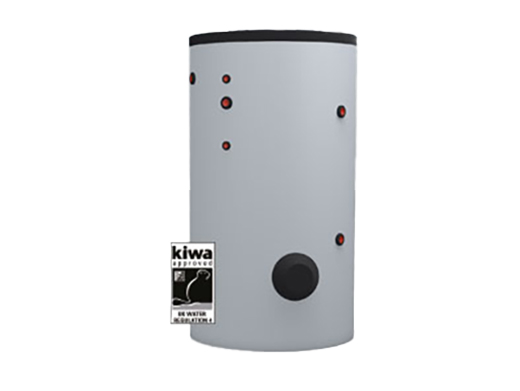

INOX-MAXI SSB

Buffer Cylinder - 501 to 2927 Litres

The Inox-Maxi SSB is a stainless steel DHW buffer cylinder with 8 models in the range and a storage capacity from 501 litres to 2927 litres.

Key features at a glance

Cost-effective

Due to the stainless steel construction of the unit, the cost of the yearly maintenance of the unit is greatly reduced by not requiring sacrificial anodes.

Maximum heat retention

Extremely low standby heat loss as low as 2.3 kW/24hr.

Durable construction

Constructed from 316L grade stainless steel providing excellent resistance to attack from corrosion.

External Control

The stored DHW temperature can be monitored and controlled externally.

Technical Information

Inox-Maxi SSB	Model	500	800	1000	1300	1500	2000	2500	3000
Storage capacity	Litres	501	759	901	1272	1398	2018	2321	2927
Max. operating pressure	bar	6	6	6	6	6	6	6	6
Max operating temperature	°C	95	95	95	95	95	95	95	95
Standby heat loss (DHW temperature 65°C)	kW/24hr	2.3	2.7	2.8	3.5	3.8	4.3	-	-
Energy class		C	C	C	C	C	C	N/A	N/A
Weight empty/full	kg	90/597	134/893	154/1055	180/1452	200/1598	340/2358	409/2730	482/3409
