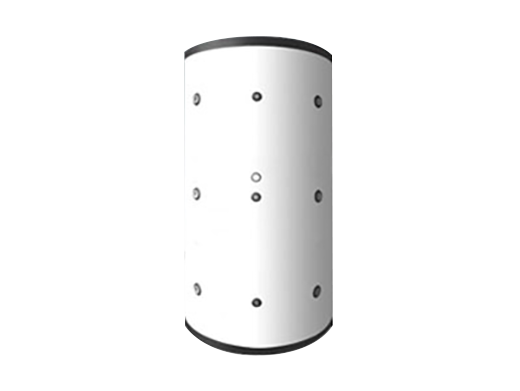

VISTRON G

Buffer Vessel - 203 to 4854 Litres

VISTRON G is a range of buffer/thermal store vessels suitable for use with air or ground/water source heat pumps. The vessels are suitable for both heating and cooling, with capacities from 203 to 4854 litres and multiple connections allowing compatibility with several heat sources. Maximum working pressure 6bar.

Key features at a glance

Multi-energy capture

Multiple connections enabling the vessel to capture energy from multiple heat sources.

Maximum heat retention

Very low standing losses.

Flexible

Multiple connection tappings are included as standard to allow varied application possibilities.

Versatile

Suitable for both heating and cooling.

Technical Information

Vistron G.SCH-N	Model	200	300	500	800	1000	1500	2000	2500	3000	4000	5000
Type of storage tank		Non-vitrified	Non-vitrified	Non-vitrified	Non-vitrified	Non-vitrified	Non-vitrified	Non-vitrified	Non-vitrified	Non-vitrified	Non-vitrified	Non-vitrified
Storage tank capacity	Litres	203	277	473	732	855	1420	2013	2346	2959	4043	4854
Heat dispersion	W	68	82	114	131	143	167	190	325	344	421	455
Energy class		C	C	C	-	-	-	-	-	-	-	-
Max. opertaing temp.	°C	95	95	95	95	95	95	95	95	95	95	95
Max. operating pressure	bar	6	6	6	6	6	6	6	6	6	6	6
Storage tank weight	kg	45	55	100	170	190	240	330	405	420	480	625
Tipping height	mm	1550	1700	2000	1840	2200	2110	2530	2420	2875	2820	2970
