Unique premix-burner system
The TRIGON® XL WH consists of a fully modulating, water-cooled cold flame burner which utilises a proven and innovative combustion system to provide reliable and robust performance.
TRIGON® XL WH
Instantaneous water heater
The TRIGON® XL WH represents a significant step forward in heating technology, with continuous delivery of up to 10,563 litres/hour for the Standard and Industrial models, and up to 27,354 litres/hour for the Swimming Pool model. With extremely flexible configurations, clever design and a range of models available, this water heater is perfect for a variety of commercial applications, such as health clubs, manufacturing plants and commercial laundrettes.
Flexible for every application
The TRIGON® XL WH represents a significant step forward in heating technology.
.svg){kind=icon}
Key features at a glance
Sustainable and future-proof technology
The water-cooled cold flame burner and the optimised combustion zone achieve extremely low NOx and CO emissions.
Easy transportation
The TRIGON® XL WH is built for easy transportation, supplied with cargo wheels allowing it to be easily manoeuvred on site.
.svg){kind=icon}
Plug & Play

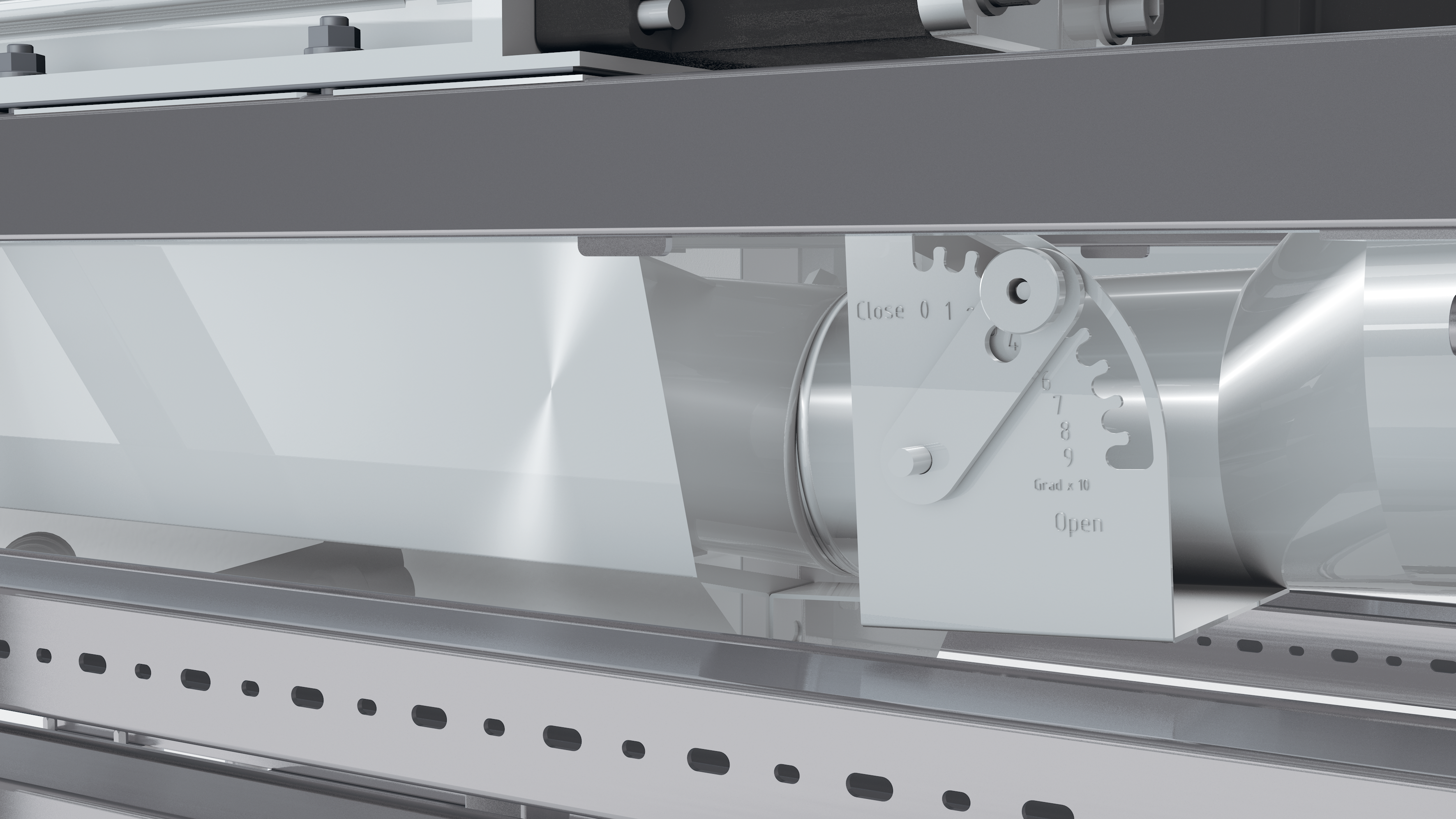

An integrated flue gas damper and rear flue connection provide an installer friendly arrangement.
.svg){kind=icon}
Flexible configuration
The inspection glass and ignition electrode can be fitted on either side of the water heater, allowing a more flexible boiler positioning on site.
Comprehensive control features
A clear text display with integrated master-slave cascade functionality (up to 8 water heaters) makes commissioning simple. Plus, upgradable module capacity provides straightforward connections to a solar system or external heat source.
Ready to plug & play
The TRIGON® XL WH features an integrated flue gas damper and rear flue connection, simplifying installation and improving flexibility. This installation friendly design streamlines commissioning and supports space-efficient setups.

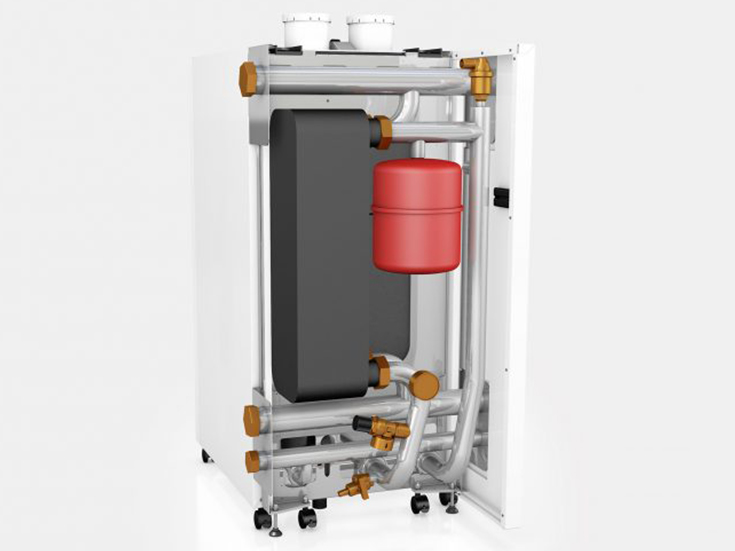

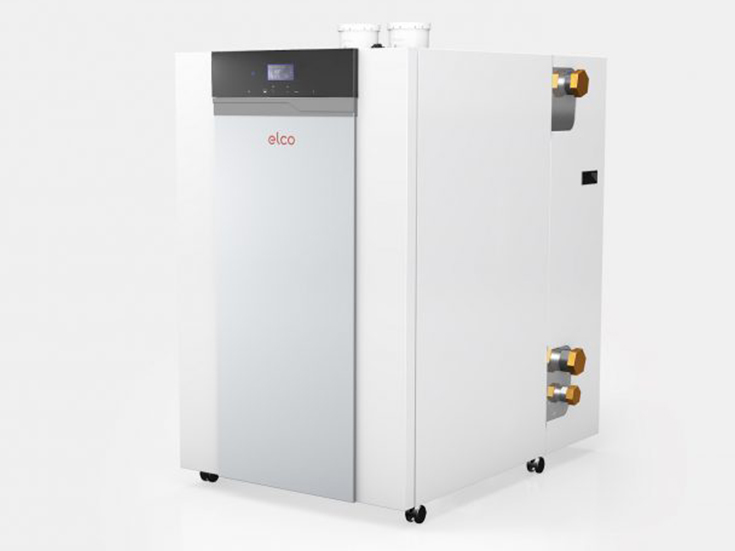

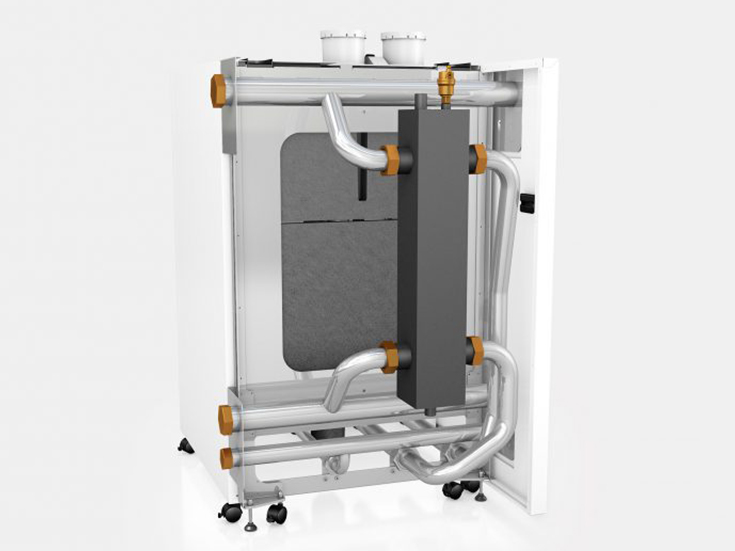

By integrating main components within the boiler, such as the pump and non return valves, installation time, costs and space required are all significantly reduced. Thanks to the new HMI (Human Machine Interface) and a wide range of accessories, quick installations and commissioning become very simple. With our backpack solution single boilers come already equipped with low loss header or plate heat exchanger.
Designed for challenging environments
A fully modulating, water-cooled cold flame burner utilises a proven and innovative combustion system to provide reliable and robust performance.
Unique premix-burner system
TRIGON® XL WH has an advanced burner design, which ensures this water heater is the most technologically advanced and best performing unit on the market. The appliance can operate with a room sealed combustion system, with the provision to duct the combustion air from outside the building, directly to the appliance casing.

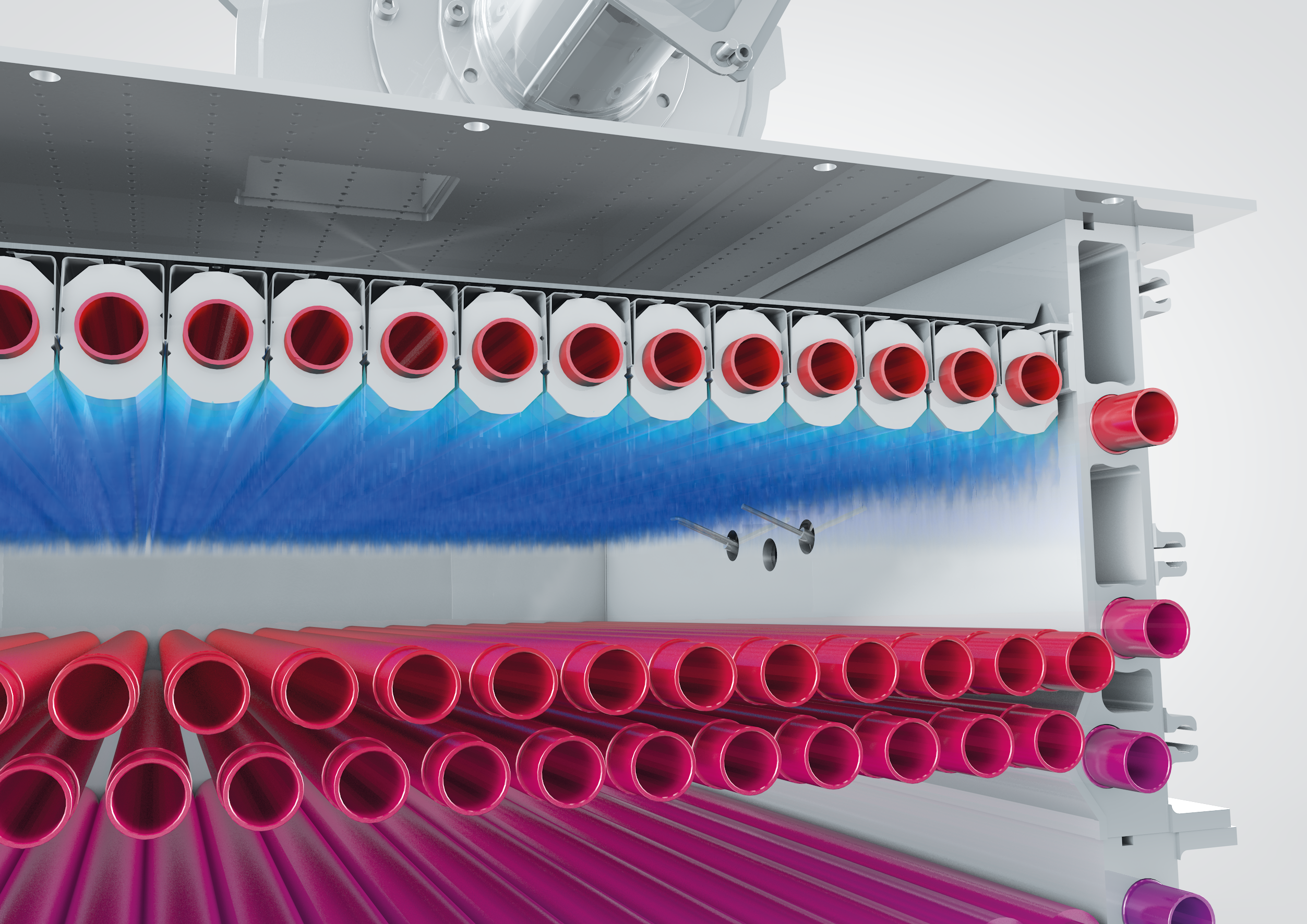

Water cooled combustion chamber
A carefully engineered hydroforming process fixes the cooling tubes inside the sidewalls, providing the highest possible thermal conductivity.Made easy: Installation and integration
The wide variety of supported bus modules facilitate a better integration into the existing “Building Management Systems” MODBUS, KNX, LON und BACNET. This way installation and monitoring of devices becomes easier.
Lightweight construction
By utilising low water content technology, the water heater can be easily installed on a rooftop – while also delivering superb response times and reduced running costs.
Intuitive operation and control
A clear text display with integrated master-slave cascade functionality (up to 8 water heaters) makes commissioning simple. Plus, upgradable module capacity provides straightforward connections to a solar system or external heat source.
Compact and robust

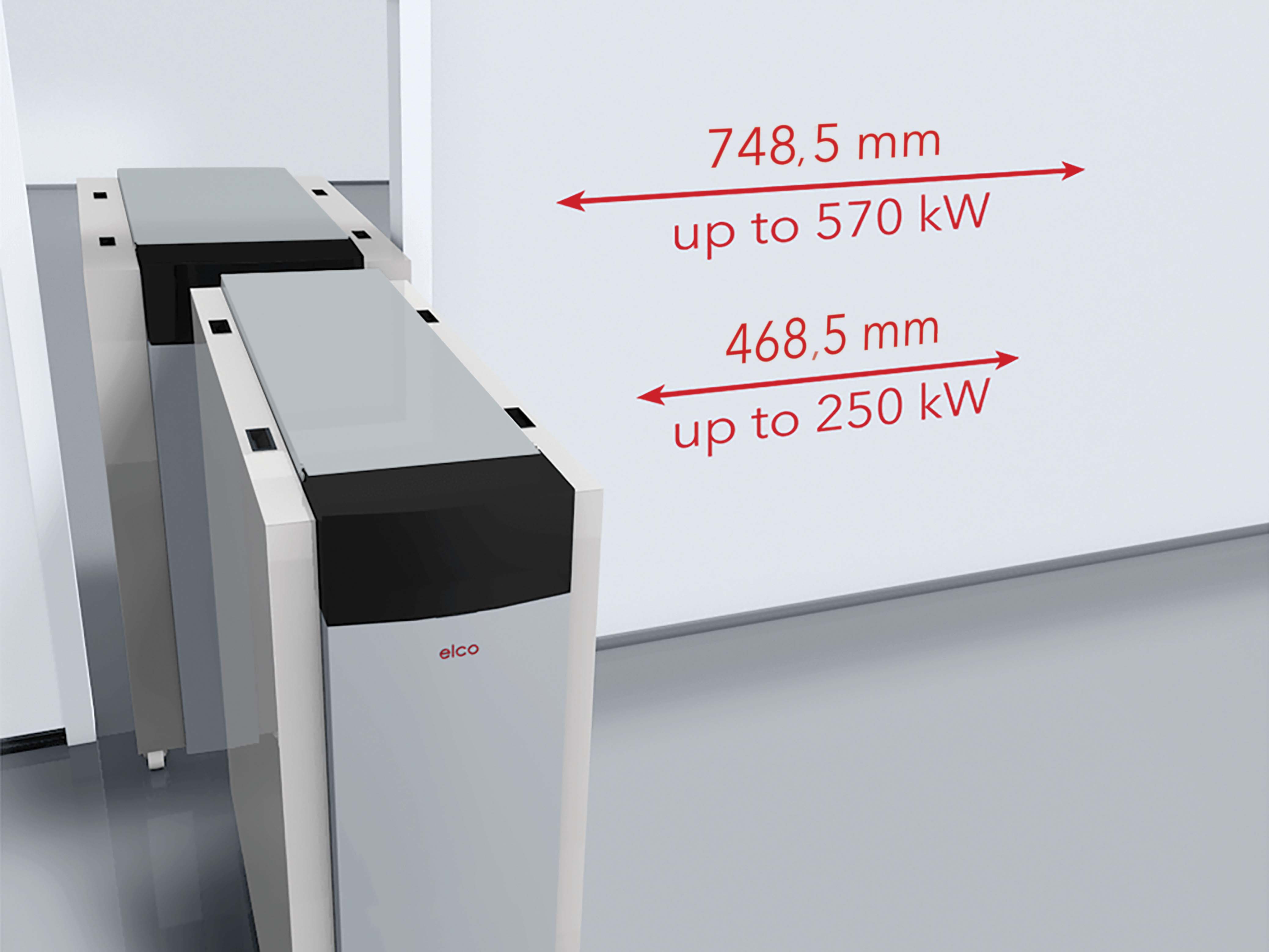

Compact build for flexible installation
All models are designed to pass through standard 760mm wide doors. The range comprises 21 models with 2 widths.
Solutions
First Class Service
Our highly trained and knowledgeable staff can help you by providing both office and field based support.
MORE ABOUT SERVICE AT ELCO
Case Studies
Our customers love their heating solutions from ELCO. View our detailed case studies showcasing successful projects across various industries.
VIEW CASE STUDIES
Hydrogen - for a greener future
As an innovator in heating technologies in Europe, the ELCO team has worked hard to develop products that will contribute to a sustainable future worldwide.
The TRIGON® L PLUS is already certified for operation with up to 20 % hydrogen and biomethane.
More about sustainabilityTechnical Data
| TRIGON XL | 150 | 200 | 250 |
|---|---|---|---|
| Performance min. - max. 40/30°C [kW] | 35.4 - 151.2 | 47.4 - 202.3 | 53.4 - 252.3 |
| Sound power level [dB(A)] | 70 | 70 | 70 |
| Dimensions H x W x D [mm] | 1457 x 466 x 1349 | 1457 x 466 x 1499 | 1457 x 466 x 1649 |
| Weight [kg] | 290 | 332 | 366 |
Technical drawings
TRIGON® L PLUS
Because every single part of the THISION® L PLUS and TRIGON® L PLUS have been developed for outstanding performance. Solutions from 60 kW up to 1600 kW offer a maximum of flexibility. Compact, lightweight and powerful. The new THISION® L PLUS is the most powerful wallhung boiler and the TRIGON® L PLUS is the most compact and lightest floorstanding boiler in it’s class. And with 14 different models (7 wallhung, 7 floorstanding) also truely versatile.
Installation

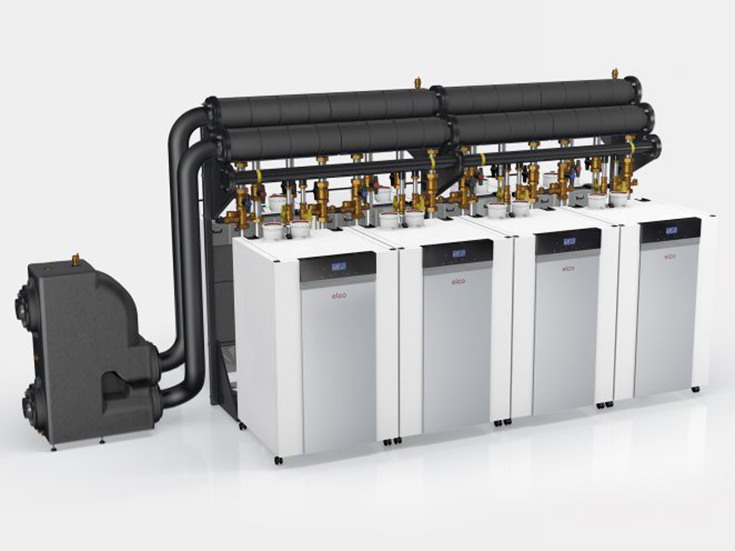

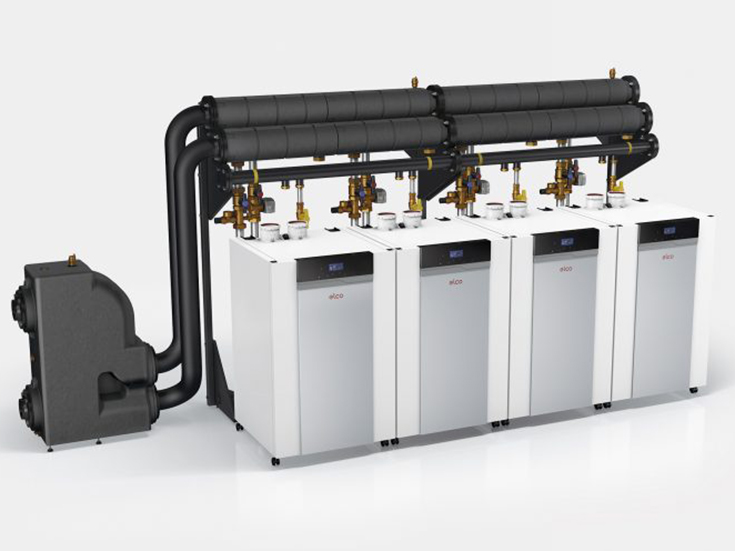

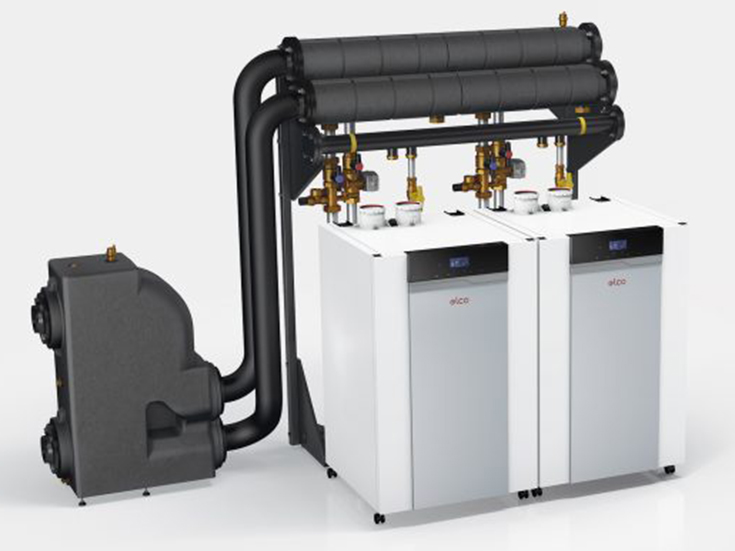

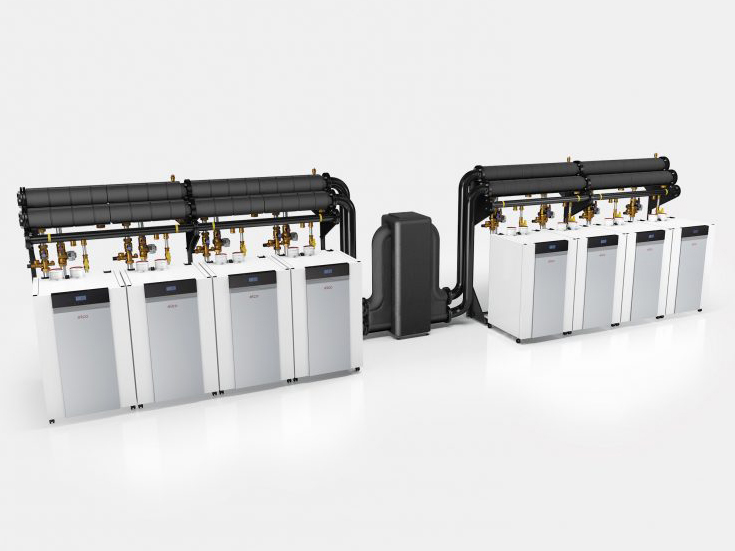

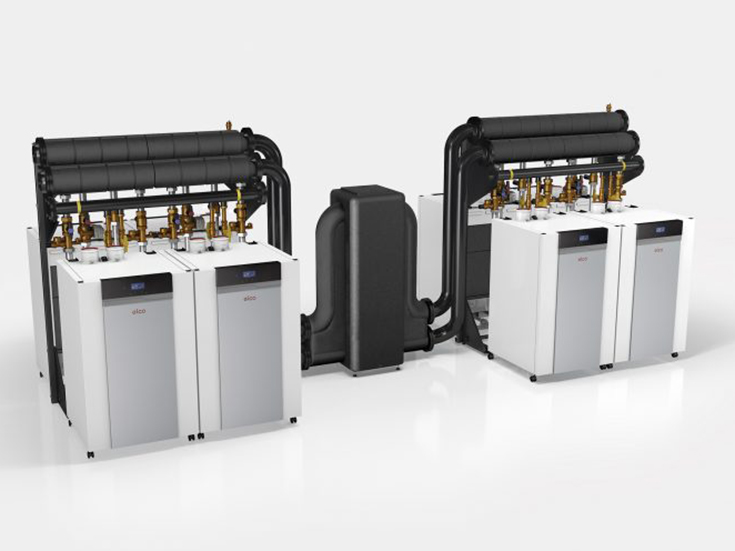

The TRIGON® L PLUS is incredibly flexible and is available in either in-line or back-to-back configurations for up to eight boilers, delivering heat outputs up to 1.6 MW. The systems include all the components necessary to complete the primary heating circuit, with the cascade system specifically designed for quick, simple and effective installation. You can also get this boiler as a wall-hung option with the THISION® L PLUS.
Cascade portfolio
Configuration TRIGON® L PLUS
Exhaust pipes
A wide range of exhaust systems for all applications and systems. Exhaust pipes are available in rigid or flexible versions. The systems are available in plastic and metal. Modern exhaust systems make expensive chimney renovations unnecessary, while plug-in technology facilitates quick and easy installation.
Cylinders
ELCO offers a wide range of different cylinders for the provision of domestic hot water for many different system concepts. ELCO cylinders combine efficiency, benefits and hygiene requirements in an attractive design.
Pump units
The pump groups with high-efficiency pumps for DN25 to DN40 can be attached directly to the boiler using special connection kits.
Clip-ins and extension controllers
Clip-ins and extension controllers are suitable for a wide range of applications, e.g. extensions for additional heating circuits, integration of solar energy, system separations and other useful functions.
